Skylights and Daylighting - July 2016

Skylights and daylighting products featured in Metal Construction News' July 2016 issue.

Linetec

Linetec

Linetec offers thermal improvement services for curved and radial finished aluminum extrusions for window, skylight, curtainwall, storefront and entrance systems. They include a full pour-and-debridge of radius material (structural and non-structural) and a crimped thermal strut system. Stress on the thermal barrier is minimized by installing it in the metal after it is curved. Performance and warranties are maintained when the extrusions are finished after curving.

www.linetec.com

CPI Daylighting Inc.

CPI Daylighting Inc.

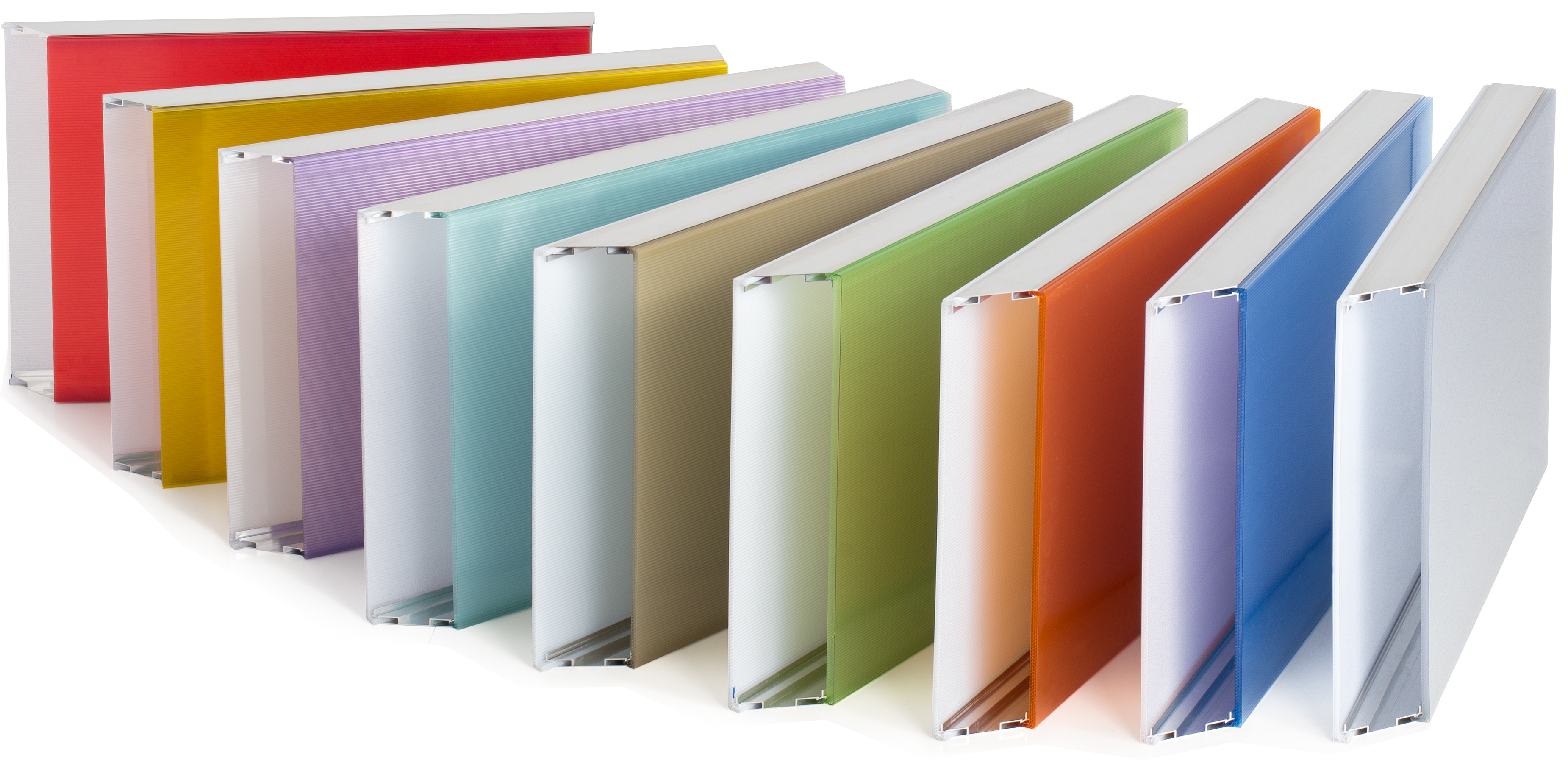

CPI Daylighting's UniQuad unitized quad-glazed translucent panel system has interior and exterior glazing panels that are independent of one another. Interior panels remain intact after installation. Exterior panels can be disengaged and removed without compromising the building envelope's integrity. UniQuad can be used for long spans and comply with deflection and code requirement due to the design of the internal support structure.

www.cpidaylighting.com

Varco Pruden Buildings

Varco Pruden Buildings

Varco Pruden Buildings' PrisMAX SL skylight self-curbing system utilizes Sunoptics' prismatic lens designed for maximum lighting performance throughout the day. It provides weathertightness with a diverter to prevent unwanted water pooling. The PrisMAX SL skylight is 24 inches wide and has an aluminum frame that attaches to the top of standing seam ribs.

www.vp.com

Solatube International Inc.

Solatube International Inc.

Solatube International's Daylight Dimmer for its SkyVault Series has a butterfly baffle for even light distribution, minimal flares when opening and closing, and almost total blackout when closed. The SkyVault Series features a tubular daylighting device (TDD) with a 29-inch diameter. It is lined with Spectralight Infinity material designed for maximum light transfer when open.

www.solatube.com

Major Industries Inc.

Major Industries Inc.

Major Industries' mixed-glazed skylights and wall systems may be designed with fixed glass and operable windows to provide light control and views. Glass and translucent glazing may be combined to create skylights. Additionally, curtainwall framing may be retrofitted to improve thermal performance.

www.majorskylights.com

R & S Manufacturing and Sales Co. Inc.

R & S Manufacturing and Sales Co. Inc.

R&S Manufacturing and Sales' RS24/32 Skyline Series skylights feature a prismatic skylight dome and thermally broken aluminum frame designed to eliminate interior condensation. They nest in the flat of trapezoidal and vertical standing seam roofs. RS24/32 Skyline Series skylights may be sequenced in 5-foot increments to maximize daylight per roof penetration. The kit includes seam caps, sub-frame, mastic, sealants and fasteners for installation. The skylights are AAMA rated and Miami-Dade approved. Optional OSHA-compliant safety screens are available.

www.rnssales.com

Bay Insulation Systems Inc.

Bay Insulation Systems Inc.

Bay Insulation Systems' Baylight Prismatic Skylights feature virgin-grade, impact-modified, clear acrylic outer dome material. The doubleand triple-glazed skylights come standard with an insulated, thermally broken frame. Baylight Prismatic Skylights reduce the chance of condensation forming on the interior of the skylight frames.

www.bayinsulation.com

Guardian Industries Corp.

Guardian Industries Corp.

Guardian Industries' UltraClear glass provides clarity and color neutrality without the green tint of standard glass. It is low-iron and fabricated, laminated and heat-treated like standard float glass. UltraClear glass is available in thicknesses from 2-mm to 12-mm and sizes to 130 inches by 204 inches. Interior applications include frameless enclosures, walls, partitions, entranceways, display cases, tables and railings.

www.guardian.com
