Lafayette Airport, Lafayette, La

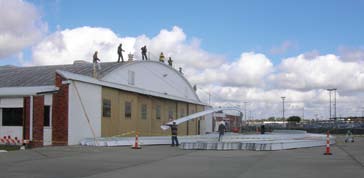

An old hangar at the airport featured a curved roof
with an existing frame spacing 5 feet on-center (o.c.).
McElroy Metal and Architectural Building Components
supplied several re-covers using the Titan 300
and 238T roof systems. The building is insured by
Factory Mutual (FM). The 24-gauge, 16-inch-wide
238T roof panels with a 2:38 pitch in Regal White and
featuring curved continuous clips is one of very few
metal roof systems to be tested at FM as a retrofit
using a Roof Hugger. The FM 1-195 rating over open
purlins 60 inches o.c. made the 238T the only roof
panel that could meet FM's requirements.

Architect: Mark Stielper, Lafayette

Project manager: MBSB Group, Lafayette

Installer: Roofing Solutions, Prairieville, La.

Metal roof panels: Architectural Building Components, Houston,
www.archmetalroof.com, and McElroy Metal, Bossier City, La., www.mcelroymetal.com,

Retrofit roofing system: Roof Hugger, Lutz, Fla., www.roofhugger.com

Airport _hangar
