Louvers, Grilles, Sunscreens and Awnings

Louvers, Grilles, Sunscreens and Awnings – May 2019

Louvers, grilles, sunscreens and awnings featured in Metal Construction News’ May 2019 issue.

Airolite Co. LLC

Airolite’s SCV302 Storm Class Louvers have 3-inch-deep, vertical, rain-resistant blades. They provide high volume intake and exhaust ventilation with protection against water penetration. The louvers are produced with extruded aluminum and come in a variety of finishes. Airolite’s SCV302 Storm Class Louvers are AMCA 500-L certified for air performance, water penetration and wind-driven rain.


Construction Specialties Inc.

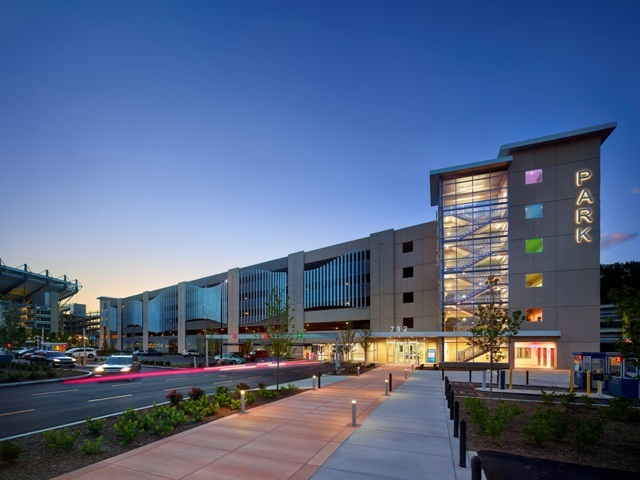

Construction Specialties’ Model 300-4 Vertical Blade Sunshades provide shading at east and west elevations where low sun angles make sun control challenging. They are produced with extruded aluminum, and come with 10-inch, 12-inch and 14-inch airfoil blades or tubes. Finishes include 40 standard and metallic colors, 15 wood grain patterns and custom colors.


CornellCookson Inc.

CornellCookson’s 300 Series MicroCoil Grille is a compact security grille with stainless steel links and a direct drive operator. Its compact operator has a variable-frequency drive that produces smooth starts and stops. The grille has curved vertical links that reduce the number of voids, tighten the coil and reduce the amount of headroom required.



LMCurbs’ Model LMC-J-4 Louvers incorporate J-style blades. They are architecturally styled, 4-inch-deep, formed louvers. Model LMC-J-4 Louvers are produced with 20-gauge galvanized steel and are available with channel or flanged frames. The blades are at a fixed 45-degree angle, and spaced approximately 4 inches on-center. Louvers are field assembled in small sections with visible mullions.
