Fasteners featured in the February issue of Metal Construction News.

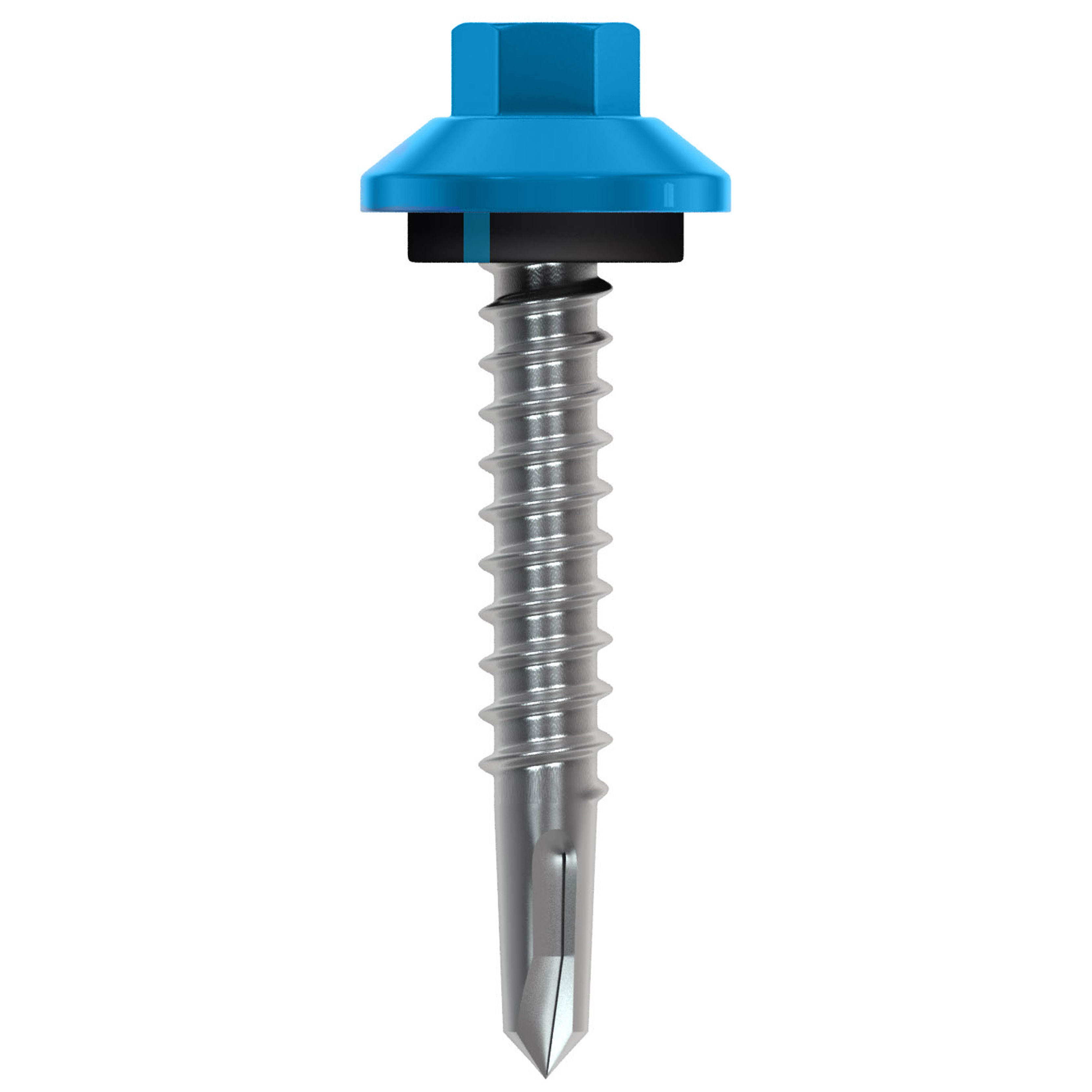

Atlas Bolt and Screw Co.
Atlas Bolt and Screw’s Ultimate Fasteners come in various lengths and head sizes, and two models: metal-to-metal and metal-to-wood. The fasteners have zinc-cast heads with a magnetic nut setters for fitting sockets. Paint adheres for consistent weathering performance. The metal-to-wood Ultimate Fastener has a Dekfast Multi-Seal Washer with four sealing points to ensure positive sealing.

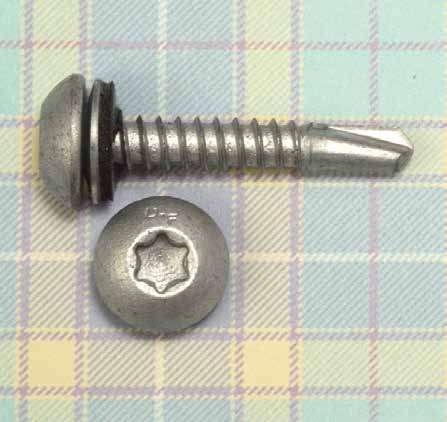

Dynamic Fastener
Dynamic Fastener’s 12-14 by 1 1/4-inch TORX T-3 Fasteners attach sheets to steel framing from 0.036-inch to 0.21-inch total steel thickness. They feature a T-3 point with a #30 torx low-profile truss head and a 7/16-inch outside-diameter washer. The 12-14 by 1 1/4-inch TORX T-3 Fasteners come with Dyna-Coat 1,000-hour salt spray coating, and custom colors are available. Lengths include 1 inch, 1 1/4-inch, 1 1/2-inch, 2-inch and 3 1/2-inch.

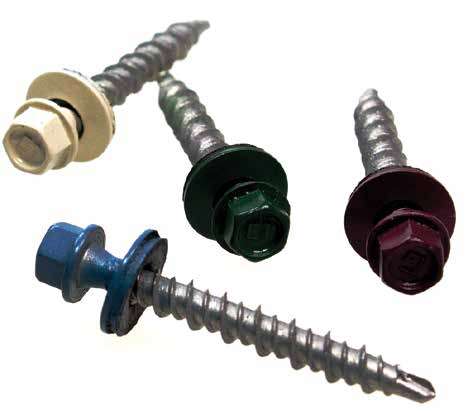

East Coast Fasteners and Closures Inc.
East Coast Fasteners and Closures’ Ply-Lo Driller fastener attaches metal to wood. It features a forgiving tip that reduces the likelihood of walking when it is driven at a slight angle. The Ply-Lo Driller is a #10 fastener that comes in five lengths: 1 inch, 1 1/2 inches, 2 inches, 2 1/2 inches and 3 inches. The fastener comes in many colors to match metal panels.
www.plyco.com/building-components/east-coast-fasteners

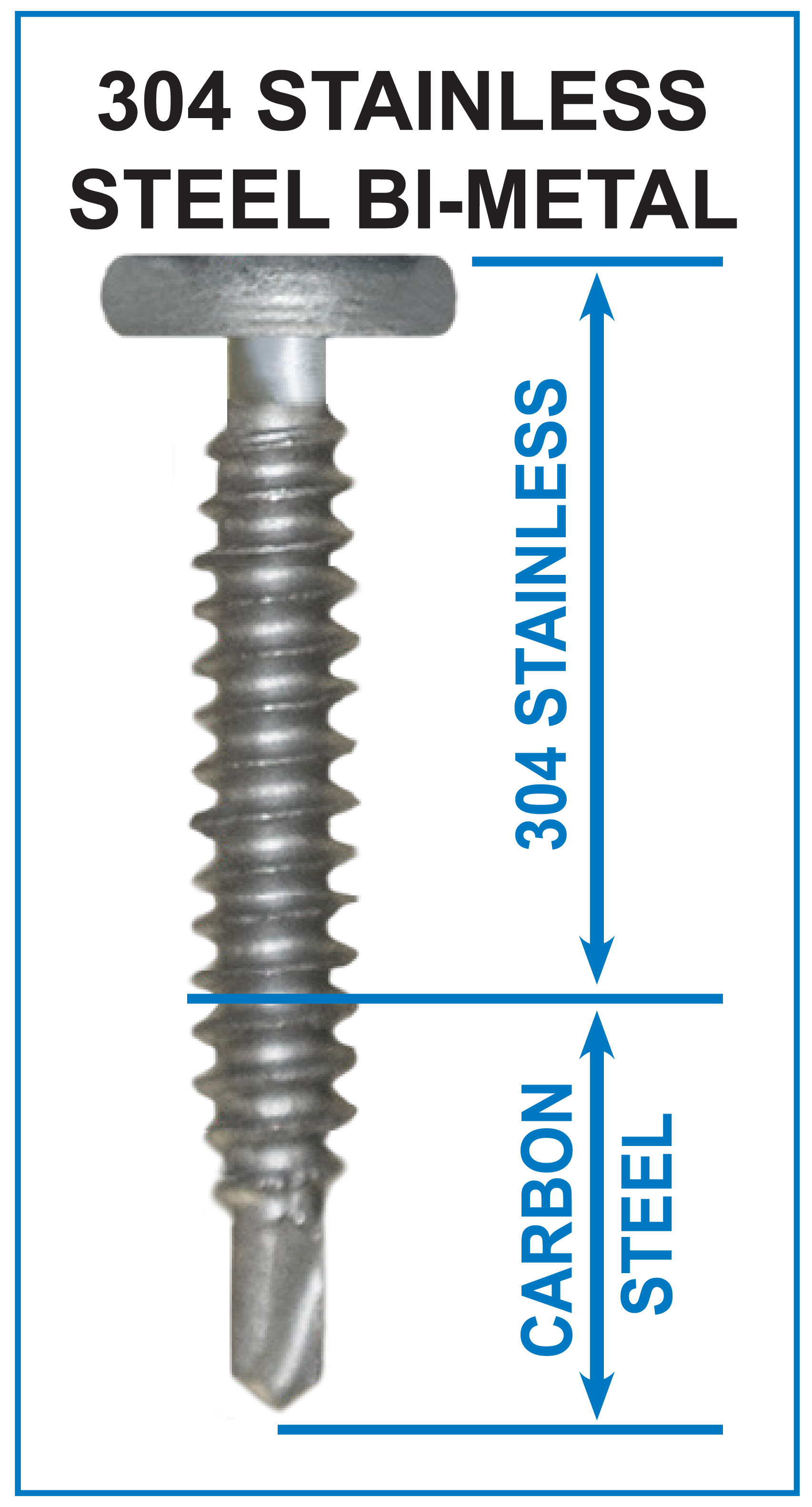

Triangle Fastener Corp.
Triangle Fastener’s #14-13 DP1 304 Stainless Steel Bi-Metal Concealor fasteners have buttress threads that increase pullout loads and resistance to back-out. They are made with 304 stainless steel to provide corrosion resistance and ductility. The fasteners are available in four sizes: #14-13 x 1-1/2” DP1, #14-13 x 2” DP1, #14-13 x 3” DP1, #14-13 x 7” DP1. They fasten to metal, wood and concrete, and a #2 square recess provides stability during installation. Additionally, #14-13 DP1 304 Stainless Steel Bi-Metal Concealor fasteners are TRI-SEAL top-coated to improve tapping and reduce thread rollover.
