Never Such Devoted Sisters

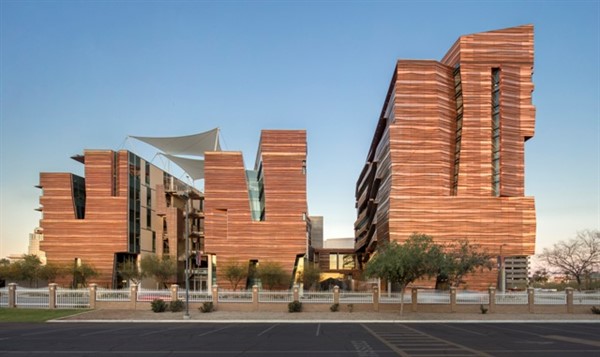

In Phoenix, a copper-clad building with undulating metal panel walls, rises above its sister building, similarly clad and equally iconic. The Biomedical Sciences Partnership Building (BSPB) is the second phase of a two-part project. “The first phase included the design of the interdisciplinary Health Sciences Education Building (HSEB), which became an innovative and distinct urban response specific to the Sonoran Desert,” says Arnold Swanborn, AIA, LEED AP, associate principal at CO Architects, Los Angeles. “The iconic nature of the folded copper panels invokes the striated geology of the surrounding mountains and was utilized in the second phase for BSPB.” Inspired by the deep recesses of desert cliff dwellings, BSPB’s sloping, shifting, self-shaded south facade rises 10 floors above the vegetated canyon wash, resembling desert escarpments.

An iconic copper-coated building in Phoenix gets a new sister who is just as smart and pretty

By Mark Robins
By Paul Deffenbaugh

Ma Specialfeature Biomedical Sciencesjudgesaward  Jul14 2 Low Rez 600X357

A joint venture between DPR Construction, Phoenix, and Sundt Construction, Tempe, Ariz., managed the construction process. CO Architects shared architecture responsibilities with Ayers Saint Gross, Phoenix.

Photos: Bill Timmerman Photography

Copper Covering

Approximately 295,000 pounds of cooper constitute the exterior finish. KME America Inc., Oak Brook, Ill., was the copper supplier. The building’s striated texture is achieved by manipulating recycled copper, to form an innovative cladding system, which is suitable for the desert climate. To make this sunscreen, the cladding system uses nearly 4,800 formed, bent and perforated copper panels to reflect light and cast shadows that reflect the canyon walls.

Installing the copper cladding required more than just industry standard flat-panel installations. To meet the design intent, the panels have custom shapes with custom folds, and the wall assembly was fully engineered for the extreme desert climate. Due to its durability, malleability and high ductility, the copper cladding was formed and stretched into complex and intricate surfaces without breaking.

Kovach Building Enclosures, Chandler, Ariz., engineered, fabricated and installed the copper panels for the exterior of the building. Through an interactive, collaborative process, CO Architects used BIM to generate 3-D models of each panel type, which Kovach then fabricated into a series of full-size panel mock-ups. The team created the appearance of a naturally occurring random pattern using only 26 panel types, arranged in multiple combinations, using parametric software to generate algorithms for the randomized sequence of panel types. The panel size and depth balanced visual and performance goals with cost-saving strategies, such as keeping the overall panel size to domestically available copper.

Ma Specialfeature Biomedical Sciencesjudgesaward  Jul14 7  Low  Rez

One of BSPB’s greatest challenges and opportunities was its fast-track delivery. “Prefabrication contributed heavily in conforming to the schedule,” Swanborn says. Metal wall panel components were pre-assembled to increase quality, save time, and ensure early building enclosure for timely building systems installation and interior framing. “Sundt integrated the design process, which helped eliminate design re-work and give the team the opportunity to modify decisions along the way, maintaining design intent and budget without wasted work hours,” says Kent Bosworth, project executive at DPR-Sundt.

Hot, Dry Desert Climate

Copper was selected after extensive research into the qualities of metal alloys, regional appropriateness, and visual character. “Copper’s conductive qualities suited the skin and thermal chimney concepts,” Swanborn says. “Its conductive qualities to heat and create a temperature difference to promote convection, effectively exhausted heat and minimized its transfer into the building. The natural patinization of copper made it a low-maintenance solution for the client to benefit from reduced cost maintenance.”

Ma Specialfeature Biomedical Sciencesjudgesaward  Jul14 5  Low  Rez

BSPB’s copper-clad exterior serves as a shield, protecting its interior from direct solar exposure. Adapting rainscreen technology, the building’s design team took a system typically used in the Northwest and created a way to utilize copper cladding as a sunscreen, mitigating the excessive heat. A fully integrated system of copper panels, a 2-inch air space, rigid insulation and a waterproofing membrane work together to absorb the radiant heat, and allow it to vent out through the building’s top.

While the copper will likely remain a brownish hue in this arid climate, its color will change and become variegated over time, further connecting it visually to the surrounding mountains. The copper cladding for the building is made up of 90 to 95 percent recycled material, which helped achieve its LEED Silver certification.
